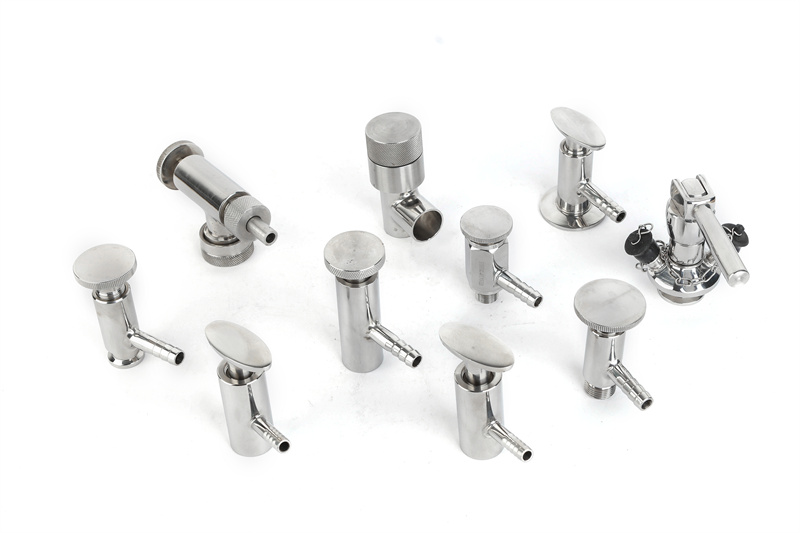

Aseptic Sampling Valve *EPDM(Standard)

Operating principles

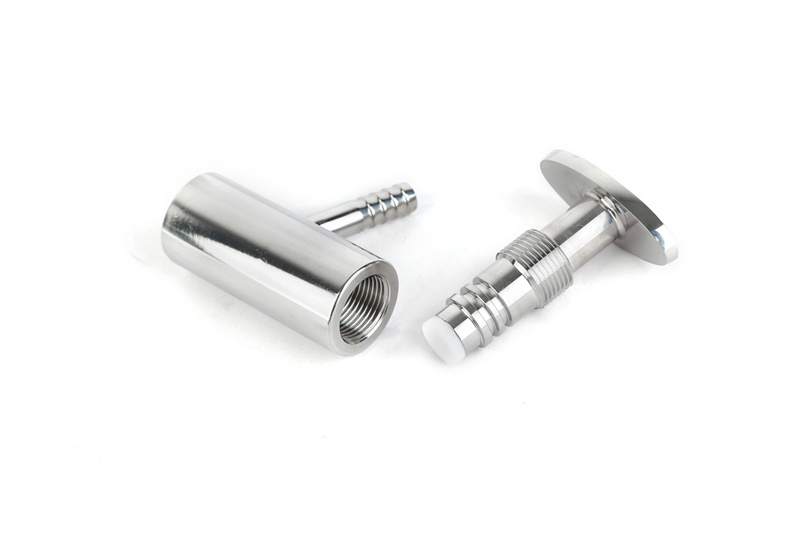

▪ The portabe type aseptic sampling valve is normally in close status, can do sterilization to the seat and seal from two connection ends, valve opening by lifiting up handle then liquid come from sampling port, also we can remove handle(on the request)this design absolutely meet the aseptic sampling result.
▪ Manual & Penumatic type aseptic sampling valve is normally in close status, operated by manual or pneumatic. When valve opens, the valve stem and diaphragm assembly will shrink up to get liquid through. This design absolutely meet the aseptic sampling result.

Technical Data

▪ Pressure
▪ Temperature
Body: 304 / 306L
Other parts: 304 / 316L
Diaphragm: EPDM (standard)
Product pressure: Maximum 6bar (86psi)
Available upon request 10bar.
Max. sterilization temperature, dry steam: 121-134℃ .steam must be dry, because the condensate water will damage the diaphragm.
Kindly suggestion for customer to replace the diaphragm after 100 times sampling and sterilization.
