Clamp Straight Through Filter

Short Description:

Applications

▪ Sanitary filter is mainly used in protecting of pumps, instrumentation and other devices to work properly. Because of its compact structure, strong filtering ability, small pressure loss ,convenient maintenance and etc.They are widely used in beverage, pharmaceutical, dairy and other fields.


Product Detail

Product Tags

Operating Principles

▪ The filter consists of a filter body with an inlet and outlet. Filter mesh is installed inside the filter body,the mesh retain all particles,which is equal or larger than mesh. When surrounding pressure of the filter exceeds demand, or when the filter element is damaged, you can remove it,then clean or change a new filter element which is used after reinstallation.

Materials

▪ Filter housing: 304/316L
▪ Metal mesh: 304/316L
▪ Perforated plate: 304/316L
▪ Gasket: EPDM
▪ Polish: Ra≤0.8μm

ST-V1130

DIN

SIZE

L

D

D1

DN40

325

50.5

76.2

DN50

360

64

101.6

DN65

395

91

101.6

DN80

452

106

114.3

DN100

640

119

139.7

ST-V1131

3A

SIZE

L

D

D1

1.5"

325

50.5

76.2

2"

360

64

101.6

2.5”

395

77.5

101.6

3"

452

91

114.3

4"

640

119

139.7

product-description1

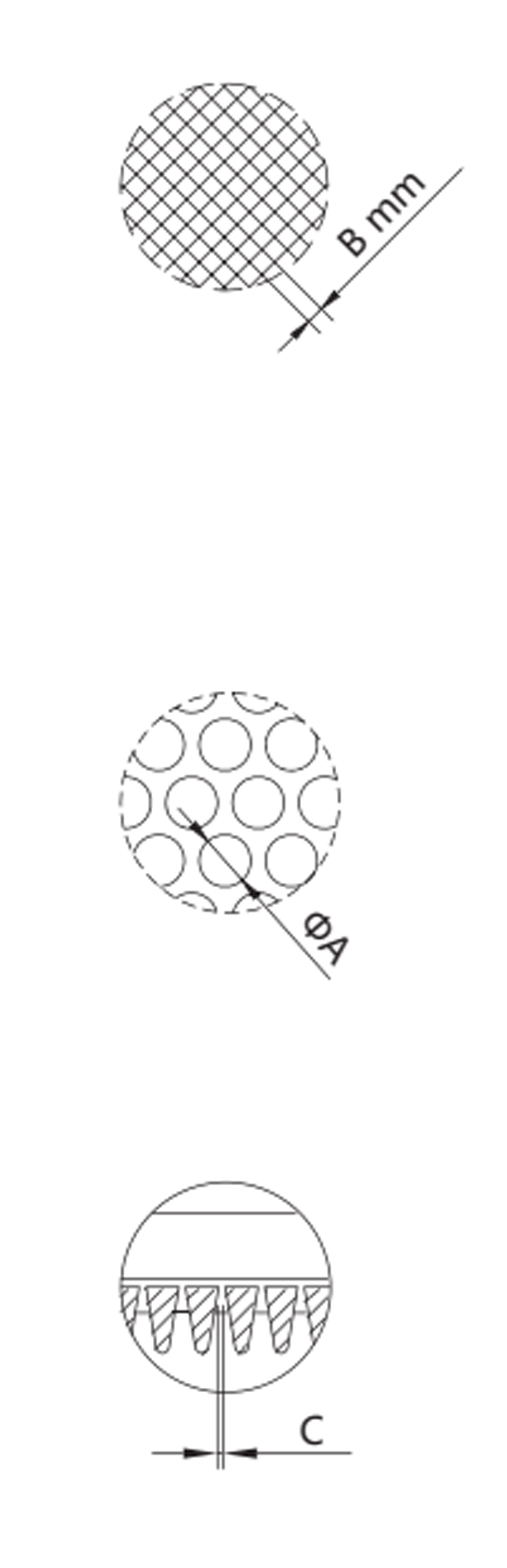

Metal Mesh

Mesh

B(mm)

Effective surface

30    40

0.55   0.40

48   46

60   80

0.30   0.20

52,6    42

100  165

0.15   0.10

36,2   45,4

Perforated Plate

A (mm) Effective surface

0.5    1

 15    28

1.5    2

33   30

 3      5

33   46

Wedge Wire

Mesh

C(mm)

Effective surface

30   40

0.55   0.40

48   46

60   80

0.30   0.20

52,6    42

100  165

0.15   0.10

36,2   45,4

Product Application

Light industry food, pharmaceutical production of materials with health requirements, such as: beer, beverages, dairy products, medical drugs, such as pulp.

Can filter particles and bacteria above 0.45 um of liquid, with the advantages of high filtration precision, fast transition speed, less adsorption, no media shedding, acid and alkali corrosion resistance, high resistance, easy operation and so on. It has been widely used in pharmaceutical, chemical, electronic, beverage, fruit wine, biochemical water treatment, environmental protection and other industrial necessary equipment.
