Sanitary Sight Glass *EPDM (Standard) NBR, PTFE (Optional)

Short Description:

Applications

Sanitary sight glass is comprised of stainless steel frame and glass. Through it, operator can observe the flowing of the linuid substance clearly and precisely in the fields of food, cosmetics, pharmaceutical and fine chemicals industries.


Product Detail

Product Tags

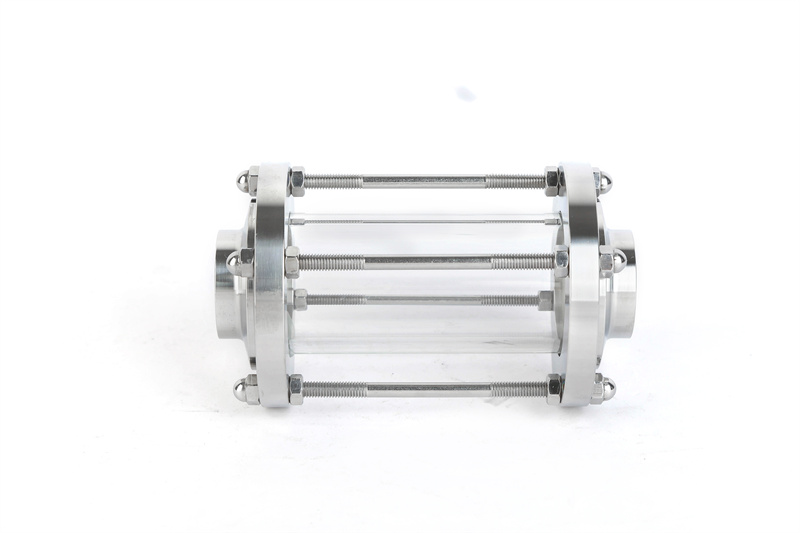

Sanitary sight  glass

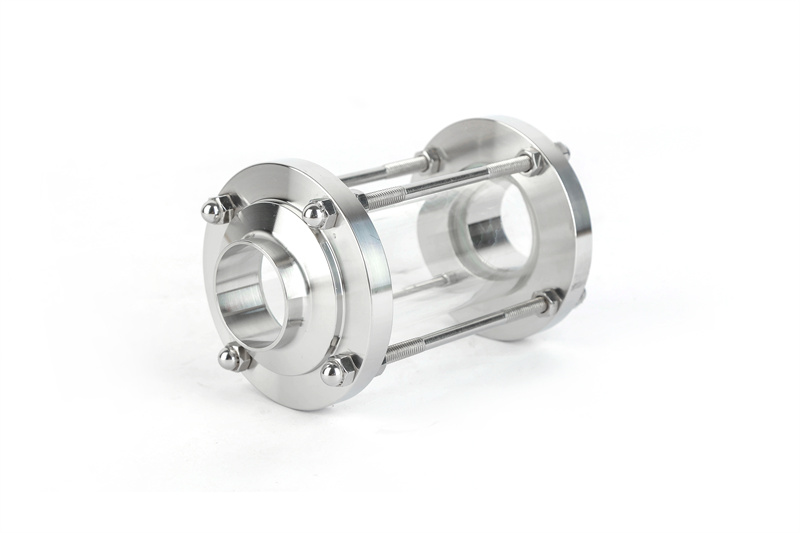

Sanitary sight  glass2

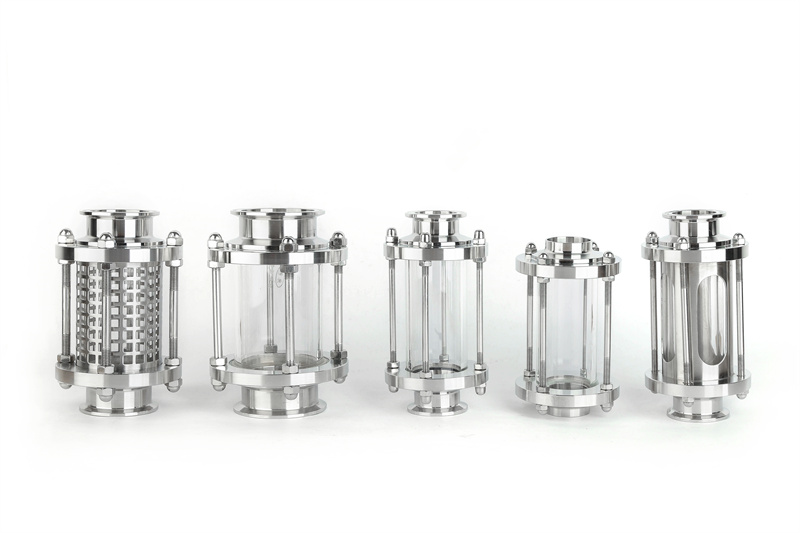

Sanitary sight  glass3

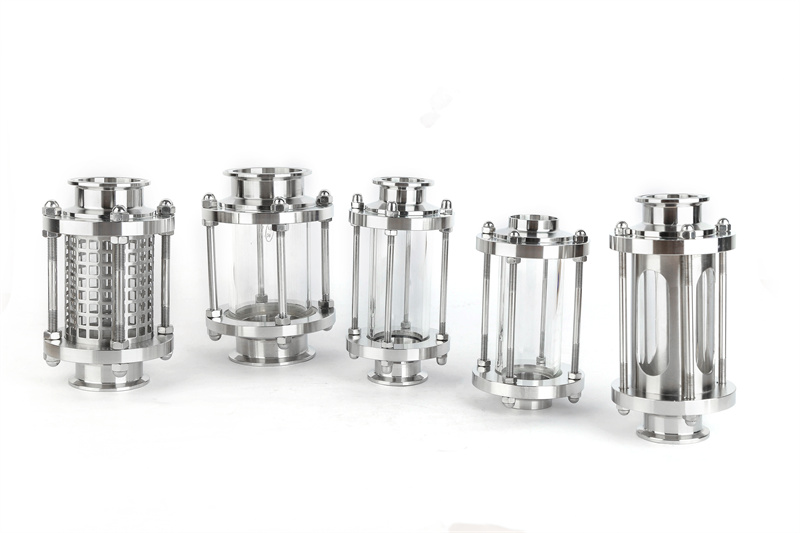

Sanitary sight  glass4

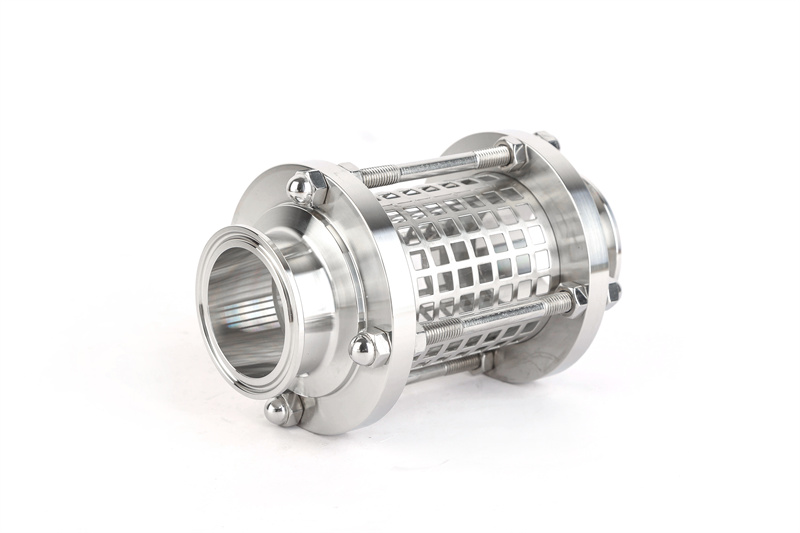

Sanitary sight  glass5

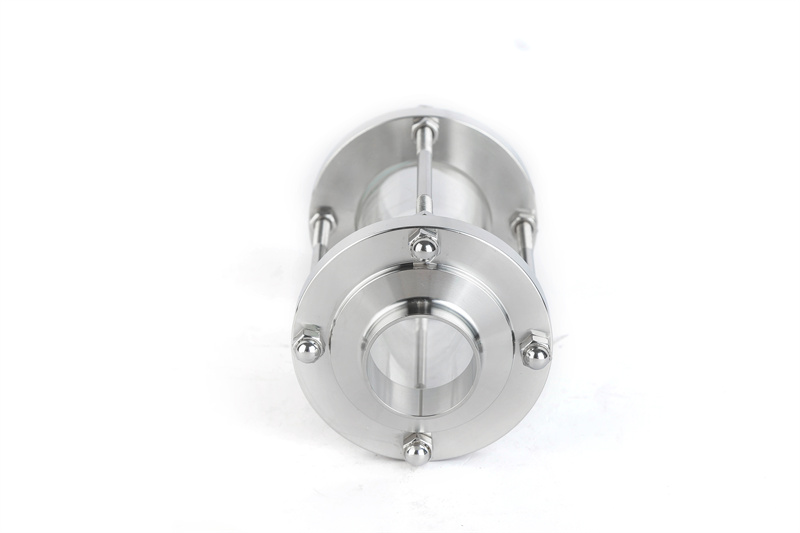

Sanitary sight  glass6

Materials

• Product wetted steel parts: 304 / 316L
• Other steel parts: 304
• The material of glass: Silicon boride glass or, tempered glass sealing silicon boride glass or, tempered glass
• Sealing elements: EPDM(standard) NBR, PTFE (optional)

Technical Data

Working temperature: -20 ~ 135°C (when the sealing is EPDM.)

ST-V1141

Welded Straight Sight Glass

SIZE

H

D

D1

Dn

DN20

140.5

78

22

19

DN25

140.5

78

28

25

DN32

140.5

82

34

31

DN40

140.5

88

40

37

DN50

140.5

102

52

49

DN65

149

124

70

66

DN80

151

139

85

81

DN100

155

154

104

100

DN125

158

185

129

125

ST-V1142

Welded Straight Sight Glass

SIZE

H

D

D1

Dn

1"

144

78

25.4

22.4

11/4"

144

80

31.8

38.8

11/2"

144

80

38.1

35.1

2"

144

100

50.8

48.8

21/2"

144

117

63.5

59.5

3"

150

129

76.2

72.2

31/2"

150

140

89

85

4”

156

160

101.6

97.6

ST-V1143               Clamped Straight Sight Glass

SIZE

H

D

D1

Dn

DN20

159

78

34

19

DN25

159

78

50.5

25

DN32

163

82

50.5

31

DN40

163

88

50.5

37

DN50

165

100

64

49

DN65

169

127

91

66

DN80

175

140

106

81

DN100

179

160

119

100

(3 A)   Clamped Straight Sight Glass

SlZE

H

D

D1

Dn

1"

156

78

50.5

24

11/4"

156

78

50.5

28.8

11/2”

160

86

50.5

35.1

2"

164

102

64

47.8

21/2"

168

115

77.5

59.5

3”

172

124

91

72.2

31/2"

175

140

106

84.9

4"

188

154

119

97.6
