Straight Type Ball Valve *Material: 304/316L

Short Description:

Applications

● Santary butterfy valve,can be used in material handingThis valve range of applications including food and beverageprocessing, pharmaceutical and chemical industries as well asother pelds.

● Completely through the valve chamber design does not produceany Buid resistance, so that the valve is such that the best choicefor handling viscous Buids or particulate matter.


Product Detail

Product Tags

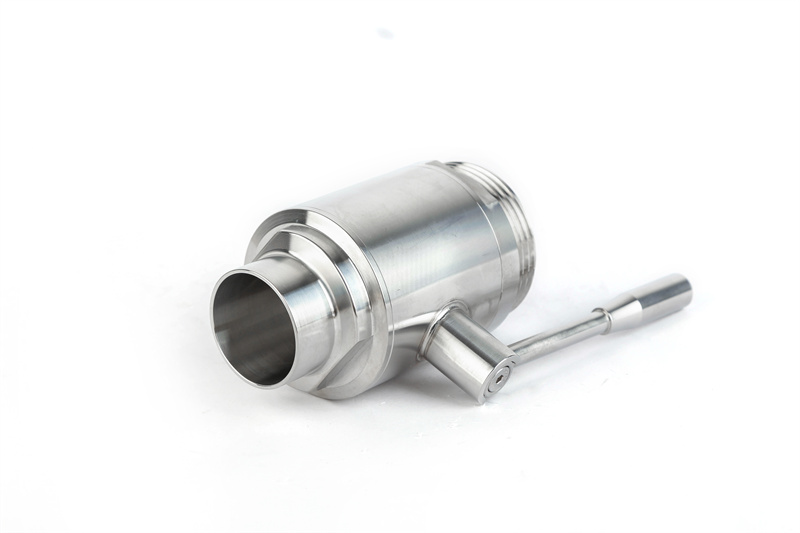

Straight Type ball valve

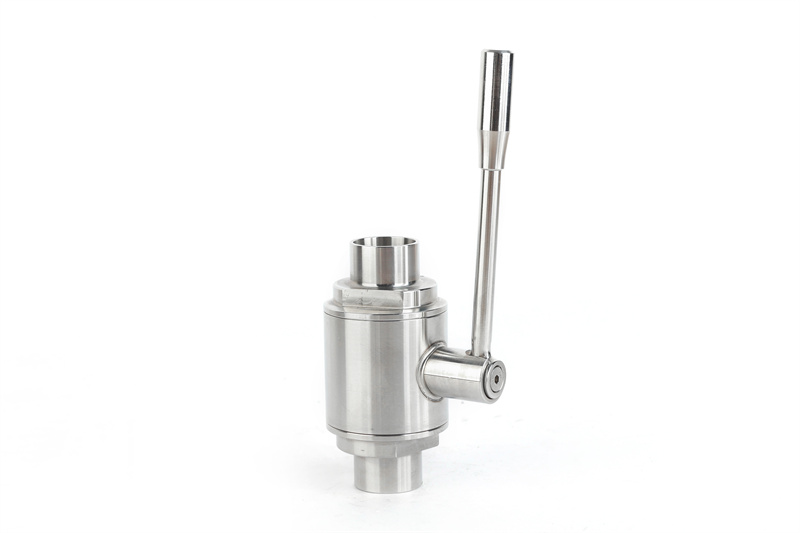

Straight Type ball valve2

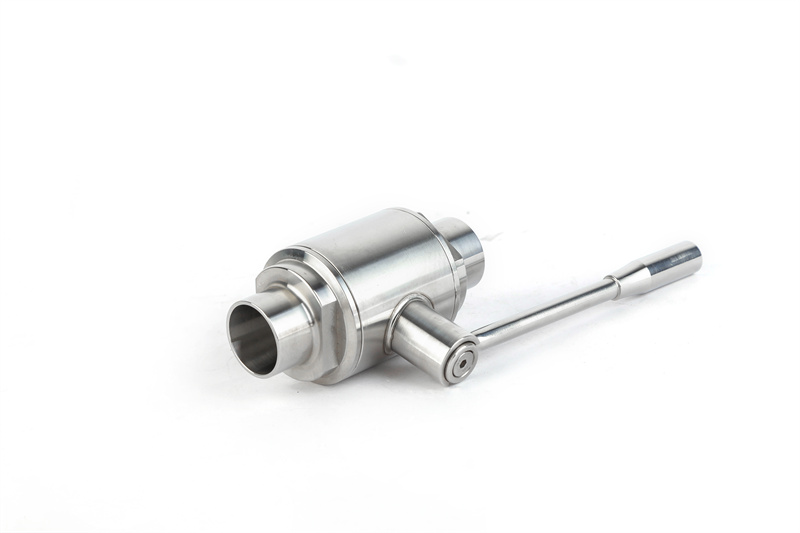

Straight Type ball valve3

Operating principles

● This kind of valve can be operated through actuator(eletricpnematic).
● Actuator or manually with the hand is to revolve the axialmovement of piston actuator (electric or pneumatic)pushed theposition of axial movement unto 90 degree; So thed it the valvecan open or dose. The actuator have three types.
● Muti-position handle can use to 15°adjustment of valve there is12 seat to lock open or close, In that way, the valve can control the Bow.
● Pulling handle can use to the 4 multi-function to lock open orclose, In that way, the valve can control the Bow.

Materials

● Product wetted steel parts: 304/316L
● Other steel parts: 304
● Flow components of surface roughness: Ra≤0.8
● Outer surface roughness: Ra≤1.6
● Pneumatic head outer surface roughness: Matt
● Wetted seals: PTFE, EPDM
● Other Seals: PTFE, NBR

Standard Design

●Have diferent standard of valve series can supply for customers, they are the DIN standard series, 3A standard series, SMS standard series, ISO/IDF standard series, BS/RJT standard series, ASME/BPE etc.
●The constitute elements of ball valve always included: one handle, one ball body with transpxion cavity, valve body, valve central spindle and spindle shaft seal.
●The speciPcation of yodsn ball valve series are welded ball valve, clamped ball valve, threaded ball valve etc.

ST-V1053

Clamped Straight Ball Valve(3A)

SIZE

d

D

L

H

S

1/2“

10

25.5

75

41

95

3/4"

17

50.5

103

47

124

1"

22

50.5

116

62

132

1 1/4"

28

50.5

125

66

137

1 1/2"

35

50.5

137

76

154

13/4"

42

64

147

84

160

2"

47.5

64

162

91

173

2 1/4"

53

77.5

167

93

173

2 1/2"

60

77.5

178

97

173

3"

72

91

200

106

234

3 1/2"

80

106

210

125

244

4"

100

119

250

164

244

5"

125

145

320

210

350
